UPRIGHT CHILLER

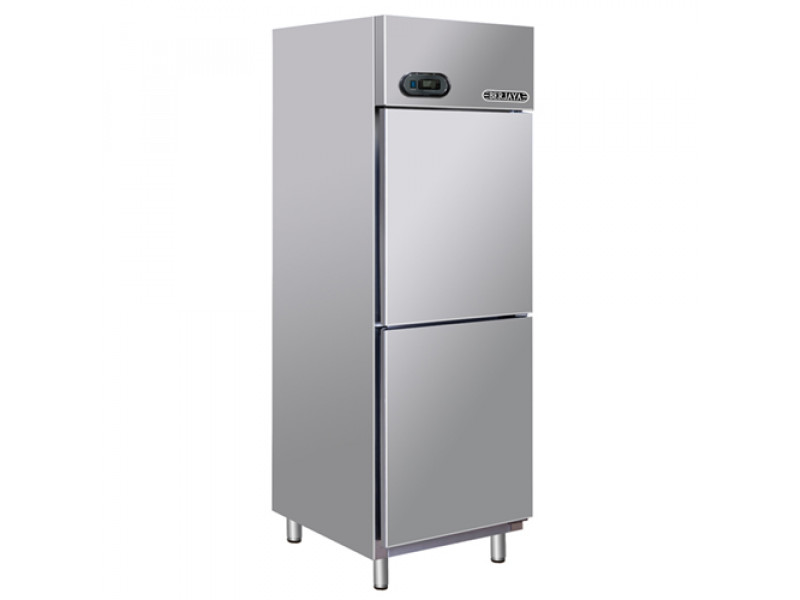

Product Name : Upright Chiller (2 Door)
High-density and Energy-saving cyclo-isopentane polyurethane is used to insulate the body. The urethane-treated evaporator coil guards against corrosion in the refrigeration system. A self-closing door with a counterbalanced weight system ensures a smooth, even, and positive closure. Environmentally friendly refrigerant (CFC and HCFC Free) R134a
| MODEL | 2 Door BS2DUC/Z |
4 Door BS4DUC/Z |
6 Door BS6DUC/Z |
|---|---|---|---|
| Temperature℃ (celsius) | +1 to +6 | +1 to +6 | +1 to +6 |
| External Dimension (mm) | 650 x 770 x 2060 | 1300 x 770 x 2060 | 1950 x 770 x 2060 |
| Gross Volume (Litres) | 471 | 1029 | 1602 |
| Voltage/ Frequency (V/ Hz) | 230V/ 1 / 50Hz | 230V/ 1 /50Hz | 230V/ 1 / 50Hz |
| 220V/ 1 / 60Hz | 220V/ 1 /60Hz | 220V/ 1 / 60Hz | |
| Cooling Capacity (W) | 522 | 792 | 913 |
| Wattage (W) | 343 - 379 | 480 - 530 | 709 - 783 |
| Ampere (A) | 2.2 - 2.5 | 3.1 - 3.4 | 5.2 - 5.8 |
| Refrigerant | R134a | R134a | R134a |
| Defrost System | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation |
| Weight (kg) | 97 | 168 | 201 |
| Unit For 20ft Container | 23 | 11 | 7 |
| Unit For 40ft Container | 48 | 23 | 15 |
