REFRIGERATED BARLINE - 700 SERIES

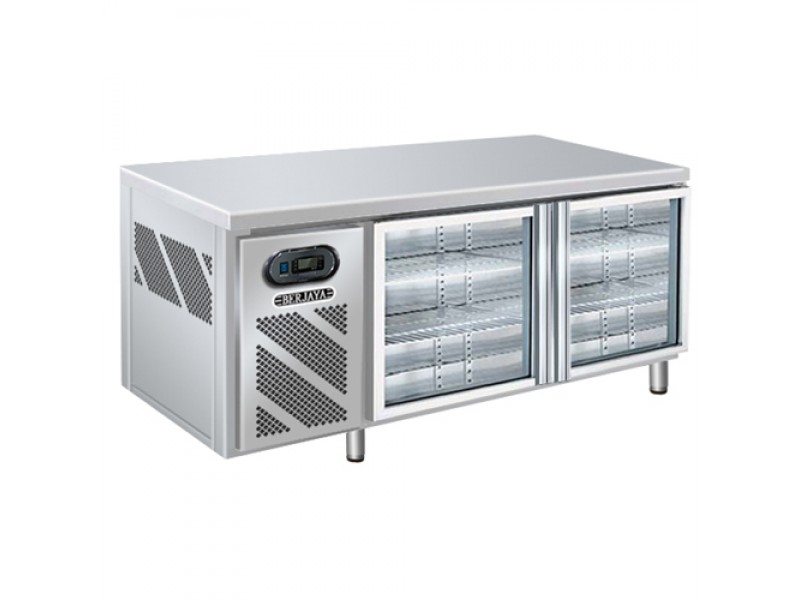

Product Name : Refrigerated Barline - 700 Series (2 Door)
The Refrigerated Barliner has a distinctive layout for holding and displaying drinks. It has lighted display to encourage impulse purchases. This counter has a high-density insulated body made of Cyclo-isopentane Polyurethane, a corrosion-resistant refrigeration system with a urethane-treated evaporator coil, and a self-closing door with an effective weight system. It also employs an eco-friendly refrigerant.
MODEL 700 Series |
2 Door B2D/C4/7-SM |
2 Door B2D/C5/7-SM |
2 Door B2D/C6/7-SM |
3 Door B3D/C7/7-SM |
4 Door B4D/C8/7-SM |
|---|---|---|---|---|---|
| Temperature℃ (celsius) | +1 to +6 | +1 to +6 | +1 to +6 | +1 to +6 | +1 to +6 |
| External Dimension (mm) | 1200 x (760 + 20) x 840 | 1500 x (760 + 20) x 840 | 1800 x (760 + 20) x 840 | 2100 x (760 + 20) x 840 | 2400 x (760 + 20) x 840 |
| Gross Volume (Litres) | 263 | 366 | 472 | 576 | 681 |
| Voltage/Frequency (V/ Hz) | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz |
| 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | |
| Cooling Capacity (W) | 639 | 750 | 750 | 977 | 1316 |
| Wattage (W) | 333 - 353 | 450 - 473 | 411 - 435 | 461 - 489 | 570 - 604 |
| Ampere(A) | 1.94 - 2.06 | 2.88 - 2.72 | 2.43 - 2.56 | 2.91 - 3.09 | 3.37 - 3.57 |
| Refrigerant | R134a | R134a | R134a | R134a | R134a |
| Defrost System | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation |
| Weight (kg) | 97 | 107 | 117 | 143 | 158 |
| Unit for 20ft Container | 22 | 22 | 14 | 14 | 8 |
| Unit For 40ft Container | 46 | 42 | 28 | 28 | 16 |
