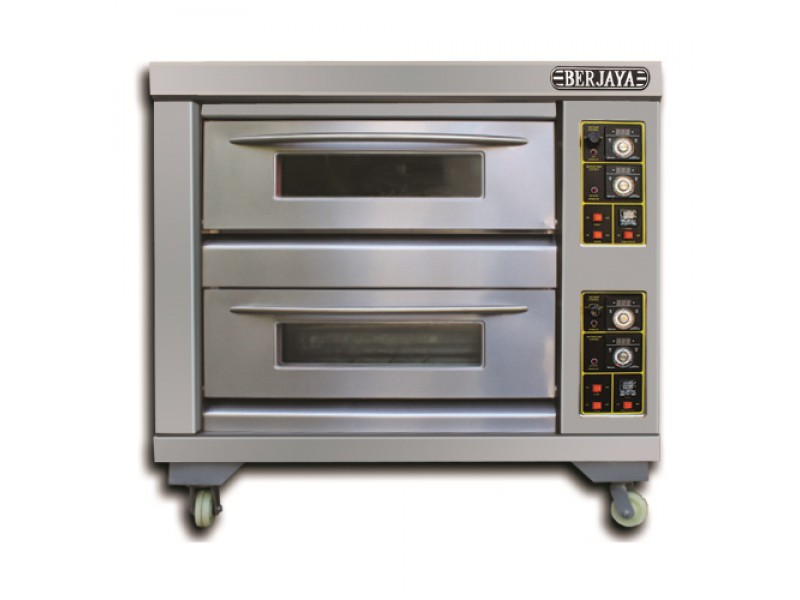

GAS HEATED BAKING OVEN
Product Name : Gas Heated Baking Oven
This gas heated baking oven is designed with a double-layered sighting window and employs computerized pulse ignition and flame intensity monitoring system. It can keep a consistent temperature, ensuring better cooking results.
| Model | 1 Deck BJY-G30-1BD |
1 Deck BJY-G60-1BD |
2 Decks BJY-G120-2BD |
3 Decks BJY-G180-3BD |
3 Decks BJY-G270-3BD |
|---|---|---|---|---|---|
| Capacity (Kg/hr) | 10 | 20 | 30 | 60 | 90 |
| Thermal Load (MJ/h) | 40 | 60 | 120 | 180 | 210 |
| Pressure (kpa) | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 |
| Gas Consumption (kg/h) | 0.24 | 0.3 | 0.6 | 0.9 | 1.3 |
| Voltage / Phase (V/Ph) | 220 - 240 / 1 | 220 - 240 / 1 | 220 - 240 / 1 |
220 - 240 / 1 |
220 - 240 / 1 |
| Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| Wattage (W) | 48 | 60 | 120 | 180 | 210 |
| Temperature range (°C) | 20 - 300 | 20 - 300 | 20 - 300 | 20 - 300 | 20 - 300 |
| No. of Baking Tray | 1 | 2 | 4 | 6 | 9 |
| Inner Dimension / Deck (mm) | 650 x 570 x 180 | 890 x 690 x 200 | 890 x 690 x 200 | 890 x 690 x 200 | 890 x 690 x 200 |
| Machine Dimension (mm) | 1000 x 740 x 550 | 1340 x 900 x 660 | 1340 x 900 x 1420 | 1340 x 900 x 1800 | 1760 x 900 x 1800 |
| Packing Dimension (mm) | 1060 x 800 x 590 | 1400 x 960 x 700 | 1400 x 960 x 1420 | 1400 x 960 x 1820 | 1820 x 960 x 1840 |
| Weight (Kg) | 70 | 135 | 250 | 370 | 470 |
