DUAL UPRIGHT CHILLER & FREEZER

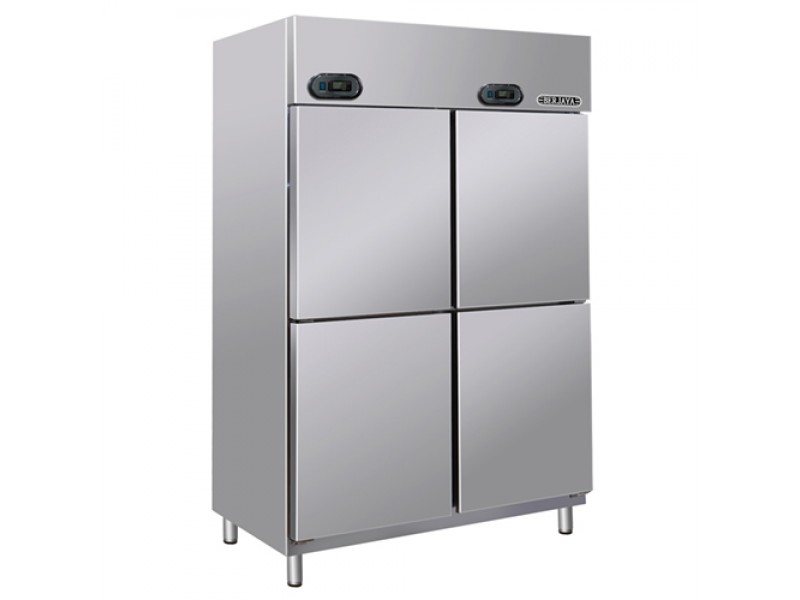

Product Name: Dual Upright Chiller & Freezer (4 Door)
High-density polyurethane insulation provides exceptional energy efficiency and product temperature retention. The insulated partition between the left freezer and right chiller compartment ensures the temperature integrity of each product zone. The refrigeration system is protected from corrosion by the urethane-treated evaporator coil. Effective counter–balanced weight system self-closing door provides smooth, even, positive closure. Environmentally friendly refrigerant (CFC and HCFC Free) R134a and R404a
| MODEL | 4 Door BSDU2F2C/Z |
6 Door BSDU4C2F/Z |
6 Door BSDU4F2C/Z |
|
|---|---|---|---|---|
| Temperature℃ (celsius) | Chiller | +1 to +6 | +1 to +6 | +1 to +6 |
| Freezer | -20 to -14 | -20 to -14 | -20 to -14 | |
| External Dimension (mm) |
1300 x 770 x 2060 |
1950 x 770 x 2060 |
1950 x 770 x 2060 |
|
| Gross Volume (Litres) | Chiller | 540 | 1041 | 540 |
| Freezer | 473 | 540 | 1041 | |
| Voltage/Frequency (V/ Hz) |
230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz | |
| 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | ||
| Cooling Capacity (W) | Chiller | 522 | 792 | 581 / 522 |
| Freezer | 680 | 680 | 876 | |
| Wattage (W) | 1188 - 1312 |
1283 - 1417 |
1378 - 1522 |
|
| Ampere (A) | 7.0 - 7.8 | 8.2 - 9.0 | 7.6 - 8.4 | |
| Energy Consumption (kw/24h) | 19.5 - 21.5 |
20.9 - 23.1 |
25.6 - 28.4 |
|
| Refrigerant | Chiller | R134a | R134a | R134a |
| Freezer | R404a | R404a | R404a | |
| Defrost System | Forced Air Circulation / Electric Heater | Forced Air Circulation / Electric Heater | Forced Air Circulation / Electric Heater | |
| Weight (kg) | 182 | 250 | 266 | |
| Unit For 20ft Container | 11 | 7 | 7 | |
| Unit For 40ft Container | 23 | 15 | 15 | |
