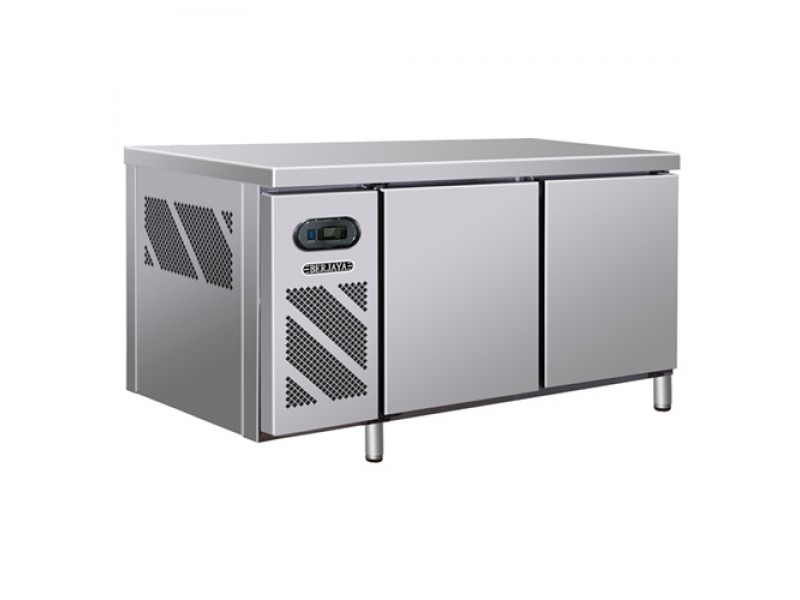

DUAL COUNTER CHILLER & FREEZER
Product Name : Dual Counter Chiller & Freezer (2 Door)
This dual counter chiller & freezer has an energy-saving high-density Cyclo-isopentane polyurethane insulated body. It has a self-closing door and an effective counter-balanced weight system for a smooth, even, and positive closure. The insulated partition between the left freezer and right chiller compartments ensures that each product zone maintains its temperature. A urethane-treated evaporator coil protects the refrigeration system from corrosion. The product is environmentally friendly. (CFCs and HCFCs free)
MODEL |
2 Door - 4' BS2DCF4/Z |
2 Door - 5' BS2DCF5/Z |
2 Door - 6' BS2DCF6/Z |
3 Door - 7' BS3D2C1F7/Z |
3 Door - 8' BS3D2C1F8/Z |
|---|---|---|---|---|---|
| Temperature℃ (celsius) - Chiller - Freezer |
+1 to +6 -20 to -14 |
+1 to +6 -20 to -14 |
+1 to +6 -20 to -14 |
+1 to +6 -20 to -14 |
+1 to +6 -20 to -14 |
| External Dimension (mm) | 1200 x 760 x 840 | 1500 x 760 x 840 | 1800 x 760 x 840 | 2100 x 760 x 840 | 2400 x 760 x 840 |
| Gross Volume (Litres) - (Left) Freezer - (Right) Chiller |
127 127 |
178 178 |
230 230 |
183 375 |
224 445 |
| Voltage/Frequency (V/ Hz) | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz |
| 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | |
| Cooling Capacity (W) | 362 | 415 | 415 | 680 | 680 |
| Wattage (W) | 371 - 409 | 418 - 462 | 456 - 504 | 462 - 510 | 474 - 522 |
| Ampere(A) | 2.5 - 2.7 | 2.8 - 3.2 | 3.0 - 3.4 | 3.1 - 3.5 | 3.3 - 3.7 |
| Refrigerant | R404a | R404a | R404a | R404a | R404a |
| Defrost System | Electric Heater | Electric Heater | Electric Heater | Electric Heater | Electric Heater |
| Weight (kg) | 88 | 107 | 119 | 141 | 151 |
| Unit For 20ft Container | 22 | 20 | 14 | 14 | 8 |
| Unit For 40ft Container | 46 | 42 | 28 | 28 | 16 |
