COUNTER CHILLER

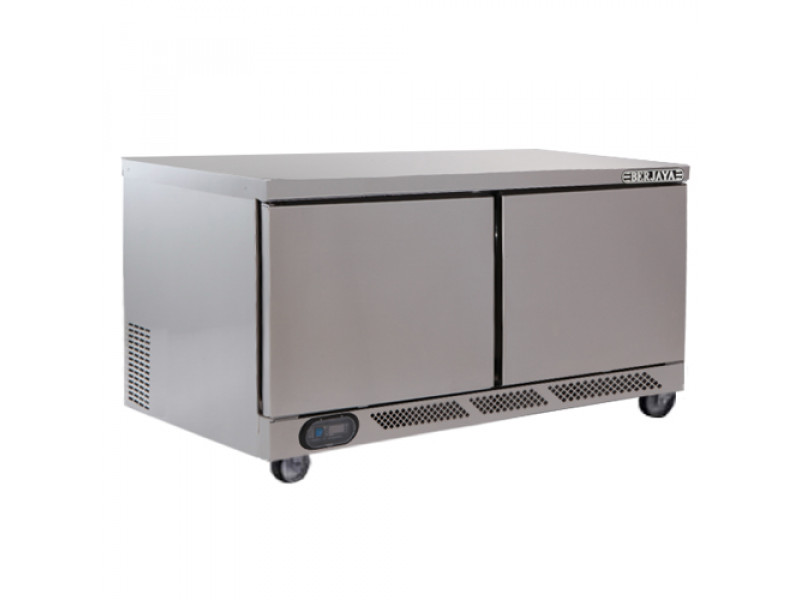

Product Name : Counter Chiller (2 Door)
This counter chiller has an energy-saving high-density Cyclo-isopentane polyurethane insulated body. It has an efficient counter-balanced weight system and a self-closing door for smooth, even, positive closure. A urethane-treated evaporator coil protects the refrigeration system from corrosion. The product is environmentally safe. (CFCs and HCFCs free)
MODEL |
2 Door - 4' BS2DC4/Z-N |
2 Door - 4' BS2DC4/Z |
2 Door - 5' BS2DC5/Z |
2 Door - 6' BS2DC6/Z |
3 Door - 7' BS3DC7/Z |
3 Door - 8' BS3DC8/Z |
|---|---|---|---|---|---|---|
| Temperature℃ (celsius) | +1 to +6 | +1 to +6 | +1 to +6 | +1 to +6 | +1 to +6 | +1 to +6 |
| External Dimension (mm) | 1200 x 760 x 840 | 1200 x 760 x 840 | 1500 x 760 x 840 | 1800 x 760 x 840 | 2100 x 760 x 840 | 2400 x 760 x 840 |
| Gross Volume (Litres) | 233 | 262 | 366 | 472 | 576 | 681 |
| Voltage/Frequency (V/ Hz) | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz |
| 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | |
| Cooling Capacity (W) | 385 | 530 | 530 | 581 | 646 | 646 |
| Wattage (W) | 319 - 353 | 307 - 339 | 348 - 384 | 562 - 400 | 373 - 413 | 377 - 471 |
| Ampere(A) | 2.1 - 2.3 | 2.5 - 2.7 | 2.7 - 3.0 | 2.4 - 2.7 | 2.5 - 2.7 | 2.7 - 3.0 |
| Refrigerant | R134a | R134a | R134a | R134a | R134a | R134a |
| Defrost System | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation |
| Temperature Control | Digital | Digital | Digital | Digital | Digital | Digital |
| Weight (kg) | 89 | 86 | 98 | 112 | 134 | 146 |
| Unit For 20ft Container | 22 | 22 | 20 | 14 | 14 | 8 |
| Unit For 40ft Container | 46 | 46 | 42 | 28 | 28 | 16 |
